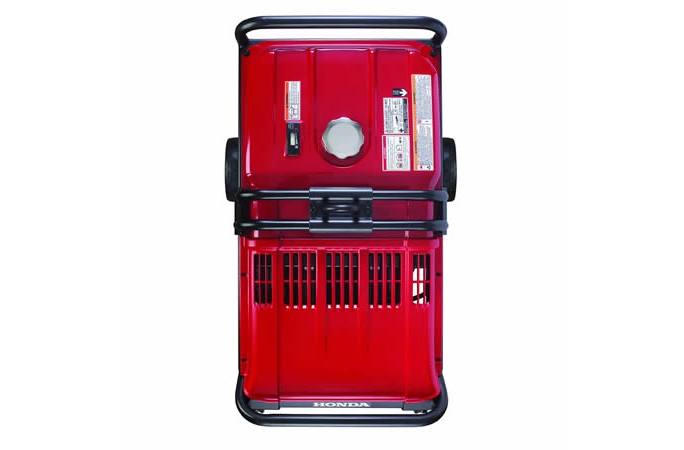

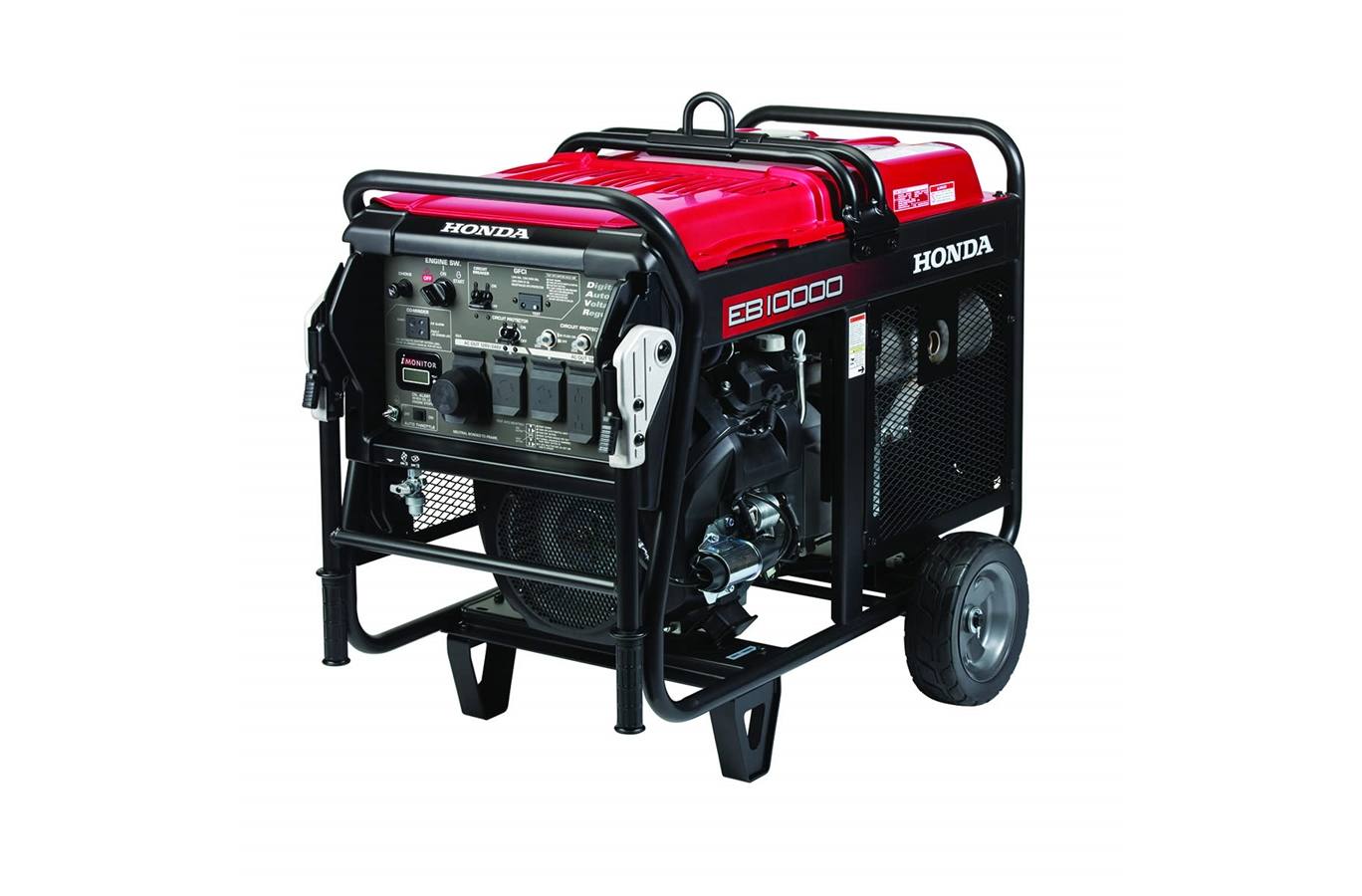

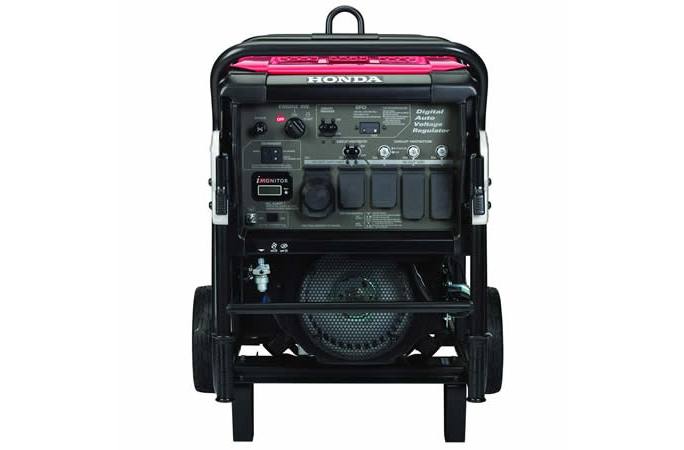

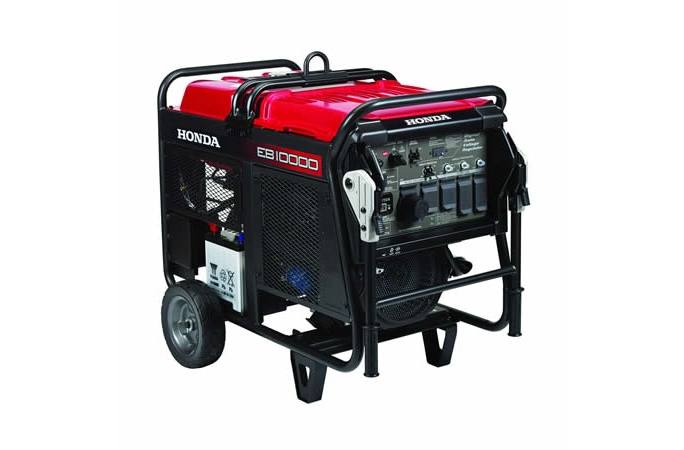

Name: Honda EB10000 with CO-MINDER
SKU: 665570
Availability: PreOrder

10000 watt 120/240V industrial generator

Key Features

G.F.C.I. / neutral bond protection
Electric start
Best fuel efficiency and lowest noise rating in its class
CO-MINDER: advanced carbon monoxide detection system

Features

CO-MINDER: Advanced Carbon Monoxide Detection System: CO-MINDER™ continuously monitors carbon monoxide (CO) levels. It automatically shuts down the generator before detected CO levels near the generator become dangerously high.
Advanced technology for consistent power and performance: The EB10000 uses Honda’s exclusive DAVR (Digital Automatic Voltage Regulator). The DAVR is designed to hold the voltage stability within a +/- 1% range during operation. This provides more consistent power.
Powerful Honda GX630 commercial engine: The Honda V-Twin engine offers more power, reliability, greater fuel economy and reduced emissions in a more compact package.
Compact shape and unique design for easy installations: The EB10000 has a compact, slim design that can be easily installed on the job site. A centralized exhaust mechanism creates a unique “hot” zone for exhaust and “cool” zone for operation and passage. This design is especially helpful when using multiple units, as they can be easily positioned so as not to impact each others’ cooling ventilation.
Quietest in its class!: The Honda EB10000 generator operates at a quiet noise level—73 decibels at 7 meters (equivalent to the noise of a vacuum cleaner). This low noise level is achieved through a large muffler that includes a punching pipe, a perforated mechanism that allows for the smooth release of exhaust gas.
Electric start

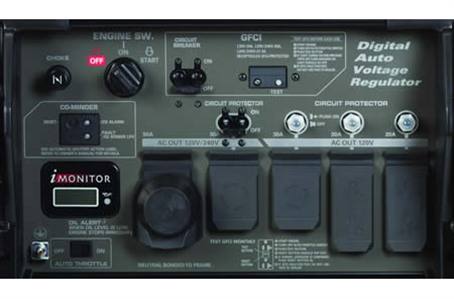

7 outlets for easy connection of multiple tools: The control panel is positioned on the narrow side of the generator for convenient, easy access to all outlets.
i-Monitor LCD readout for performance monitoring and service diagnosis: i-Monitor™ provides information on hours of operation, generator output voltage, and battery voltage, as well as diagnostics for convenient dealer servicing.
3 year commercial/residential warranty: You can rest easy, knowing your generator is covered from top to bottom for 3 full years.
Hanger kit/lifting eye standard

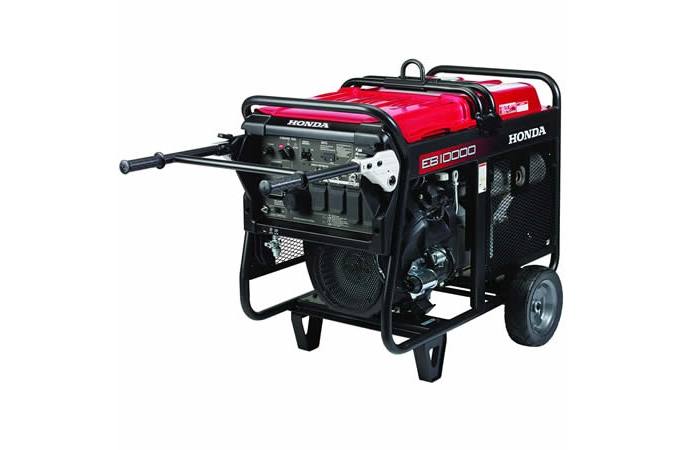

Easy folding handles: Wide, positive lock folding handles offer convenient transport and storage and a more compact unit.
Two wheel kit for easy transporting: The sturdy wheel kit makes the EB10000 easier to transport, even over rough terrain.
Best in class fuel efficency: The EB10000 runs an impressive 7.9 hours at half load and 5.4 hours at full load.
Fuel gauge standard
All circuits GFCI protected: The EB10000 offers neutral bond and full generator GFCI (Ground Fault Circuit Protection) on all outlets.
OSHA Worksite Compliant: The EB10000 was designed to meet OSHA requirements, making it ideal for worksite applications.
Tough one-piece welded frame: Helps protect the generator.
Protected by Honda Oil Alert®: Protects the generator by shutting the engine off when low oil is detected.
USDA-qualified spark arrestor/muffler
Electronic circuit breakers: Protects the generator from being overloaded.
Designed for easy maintenance: The EB10000 is designed with an easy-to-remove air cleaner and an oil gauge located near the oil filler cap – all elements that allow for ease of maintenance.
One-touch, removable plastic top cover: Allows for easy battery access and maintenance.
Reinforced standing legs
Electronic ignition
Meets OSHA, LA-ETL, and ANSI regulations

Specifications

Engine: Honda GX630
Displacement: 688cc
AC Output: 120/240V 10000W max. (83.8/41.6A) 9000W rated (75/37.5A)
iAVR Output: N/A
Receptacles: 20A 125V GFCI Duplex (2), 30A 125V Locking Plug, 30A 125/250V Locking Plug, 50A 125/250V Locking Plug
DC Output: N/A
Starting System: Electric, recoil
Fuel Tank Capacity: 8.19 gal.
Run Time per Tankful: 5.4 hrs @ rated load, 7.9 hrs @1/2 load
Dimensions (L x W x H): 41.0 in. x 27.7 in. x 35.1 in. including hanging hook & with handlebars folded
Noise Level: 73 dB(A) @ rated load, 71 dB(A) @ 50% load
Dry Weight: 403 lb.
Residential Warranty: 3 Years
Commercial Warranty: 3 Years

NOTES:

WARNING: This product can expose you to chemicals including soots, tars, and mineral oils, which are known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm.
