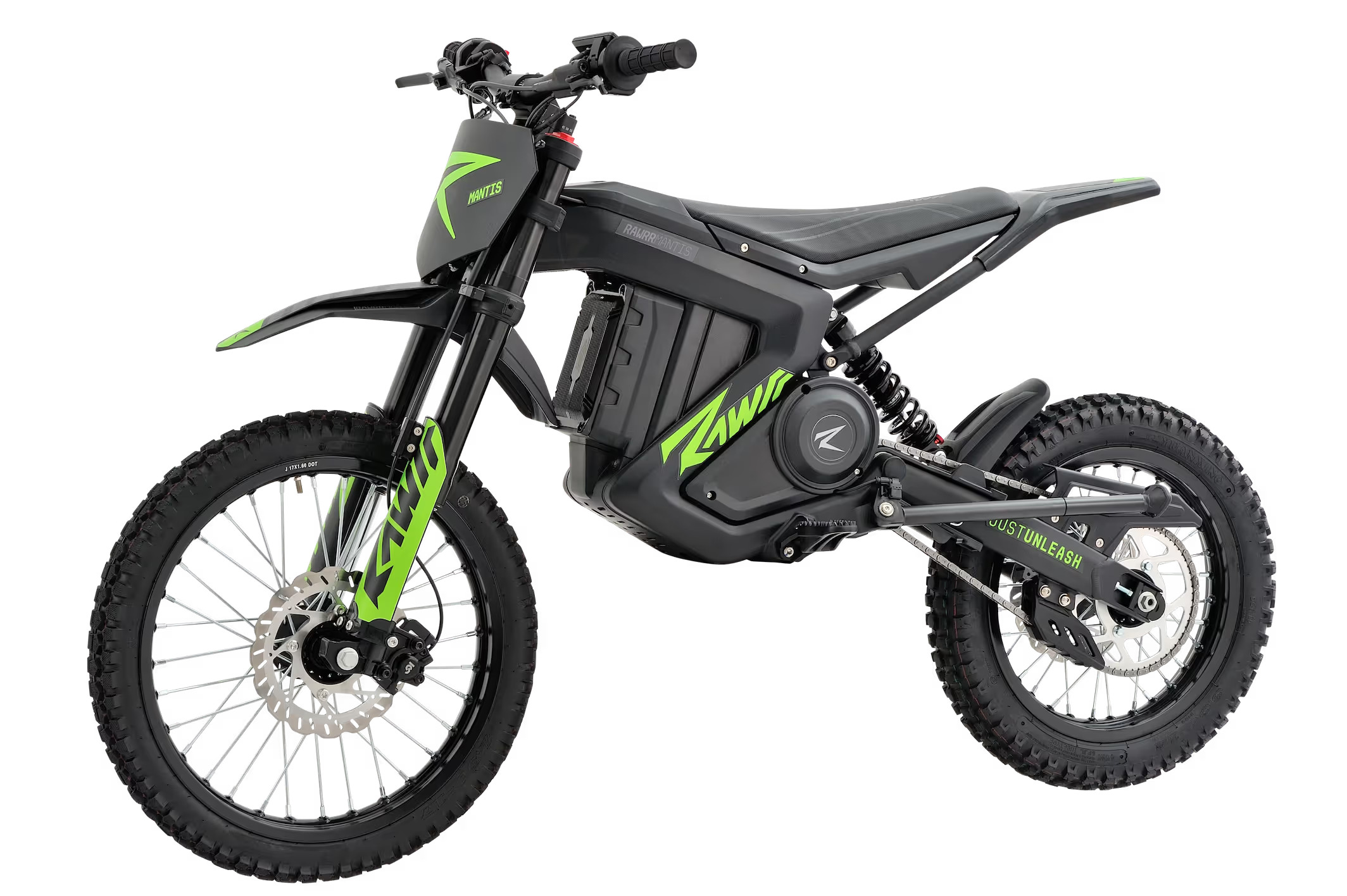

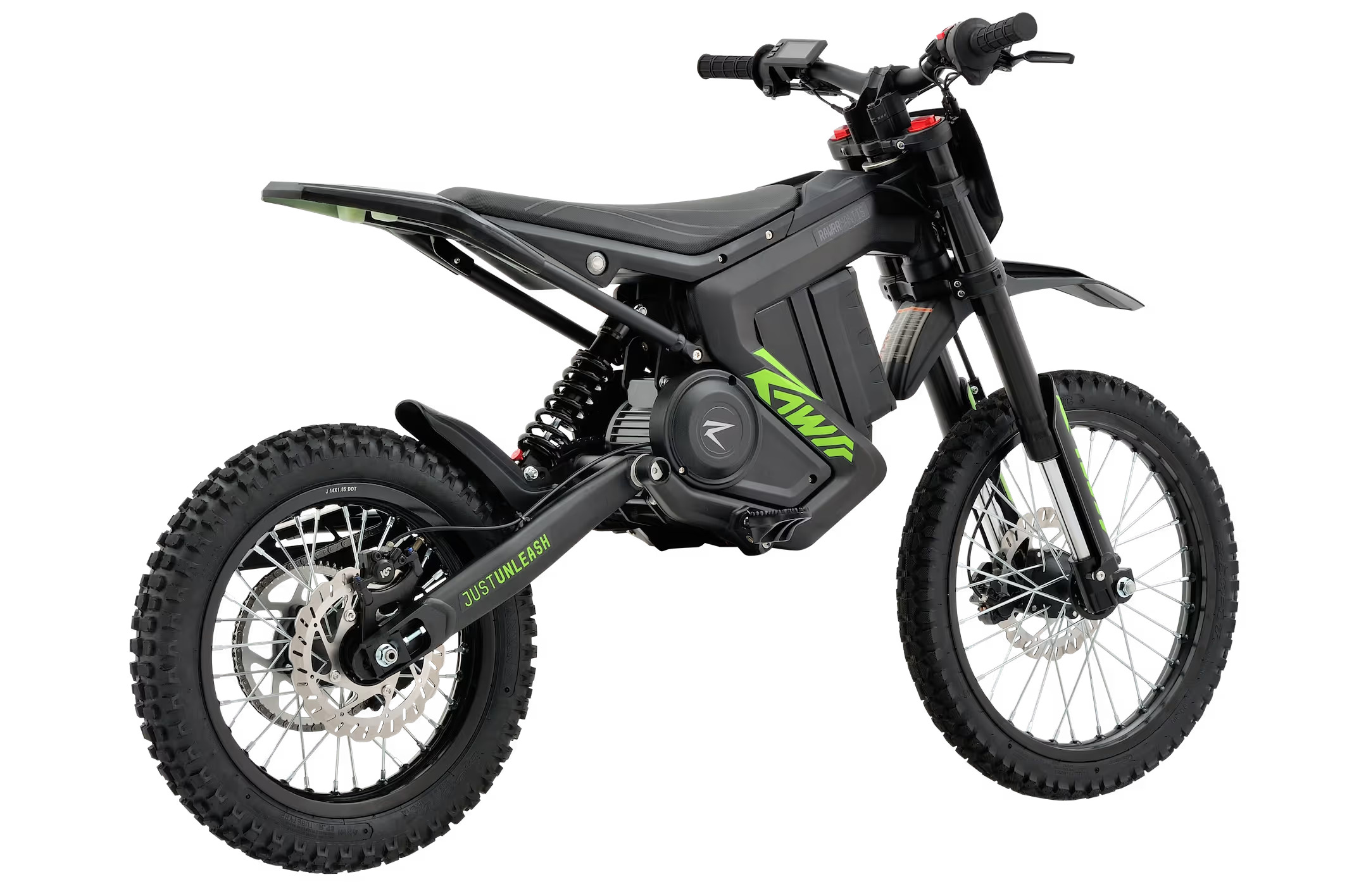

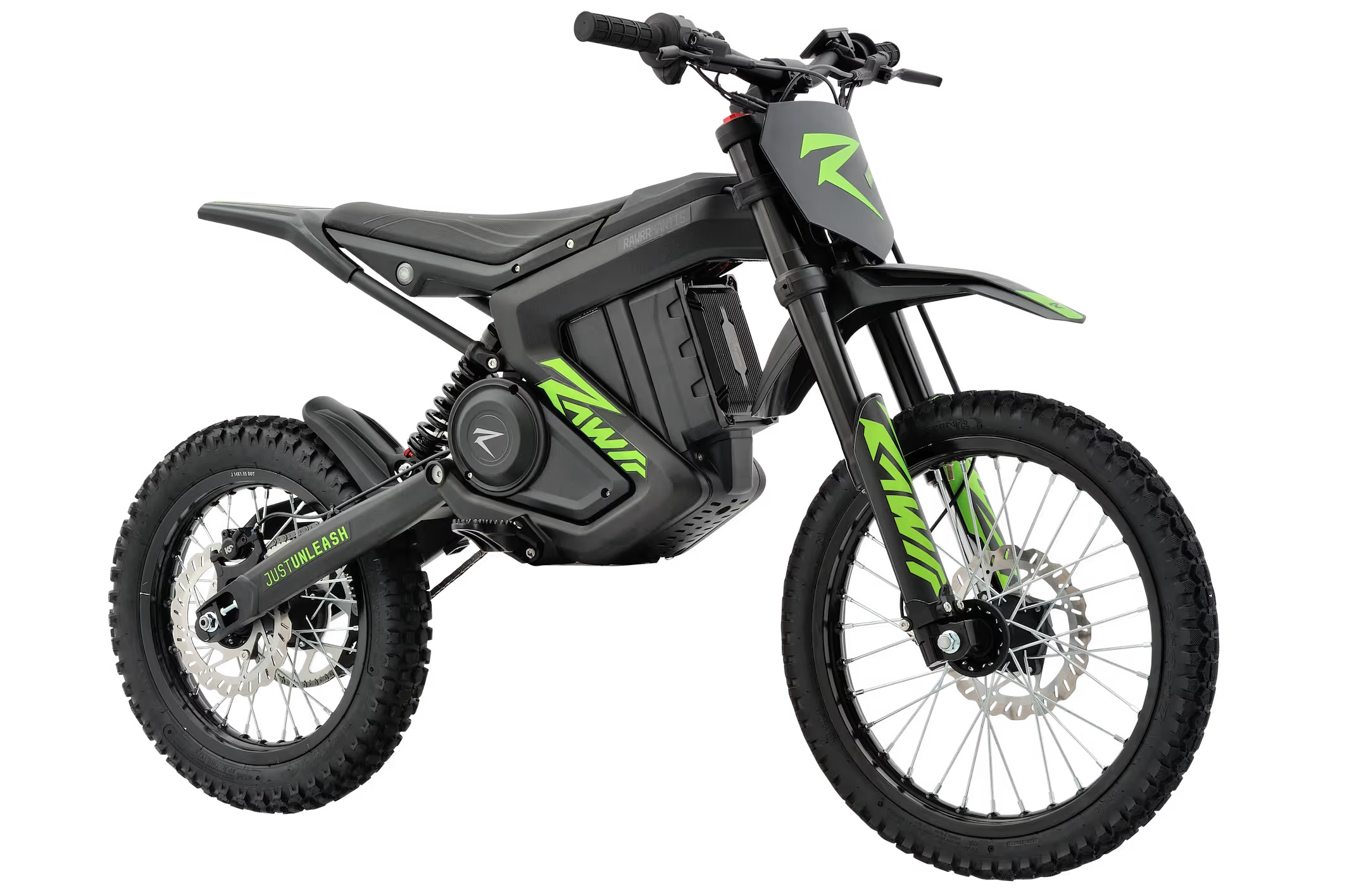

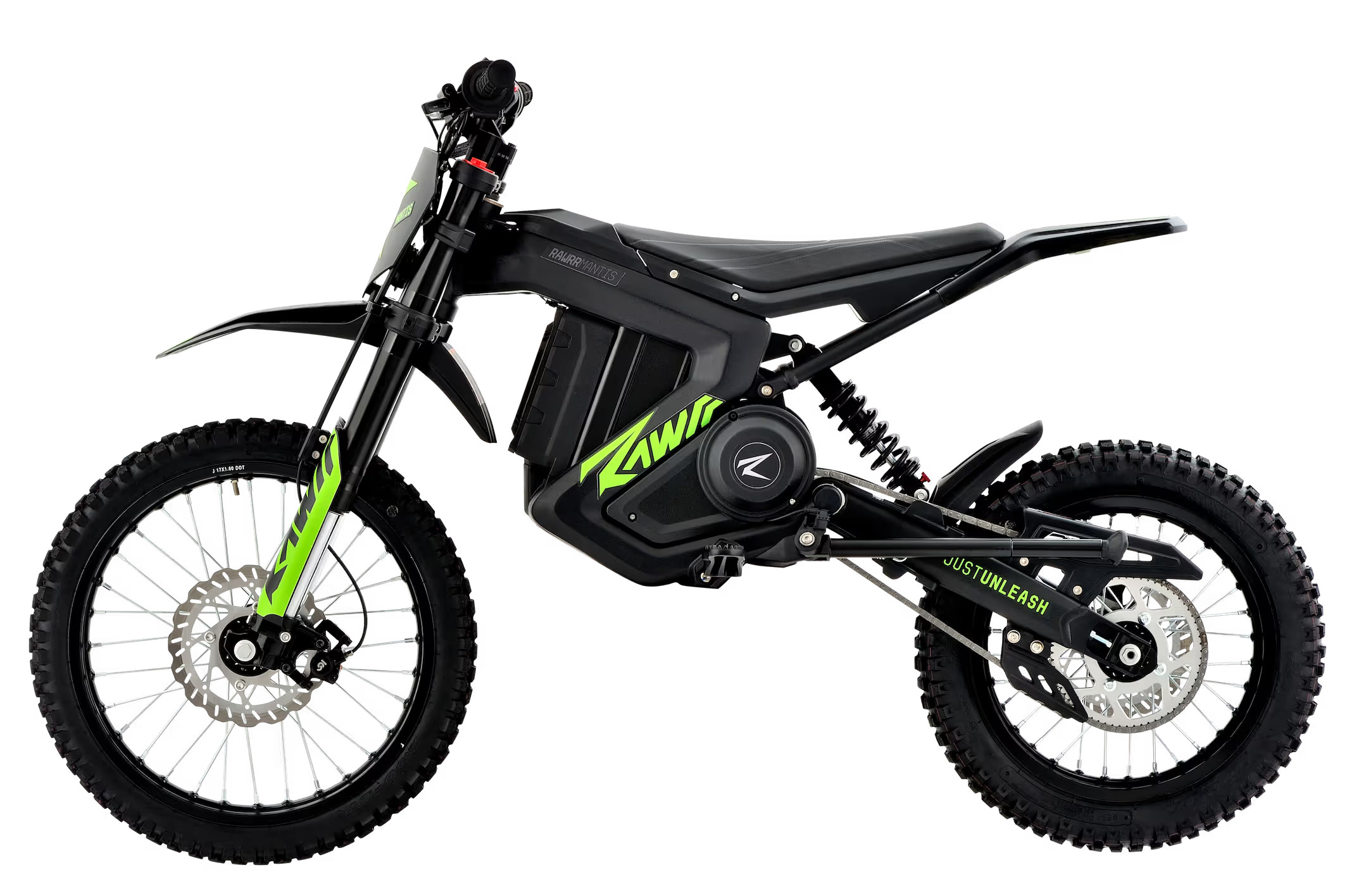

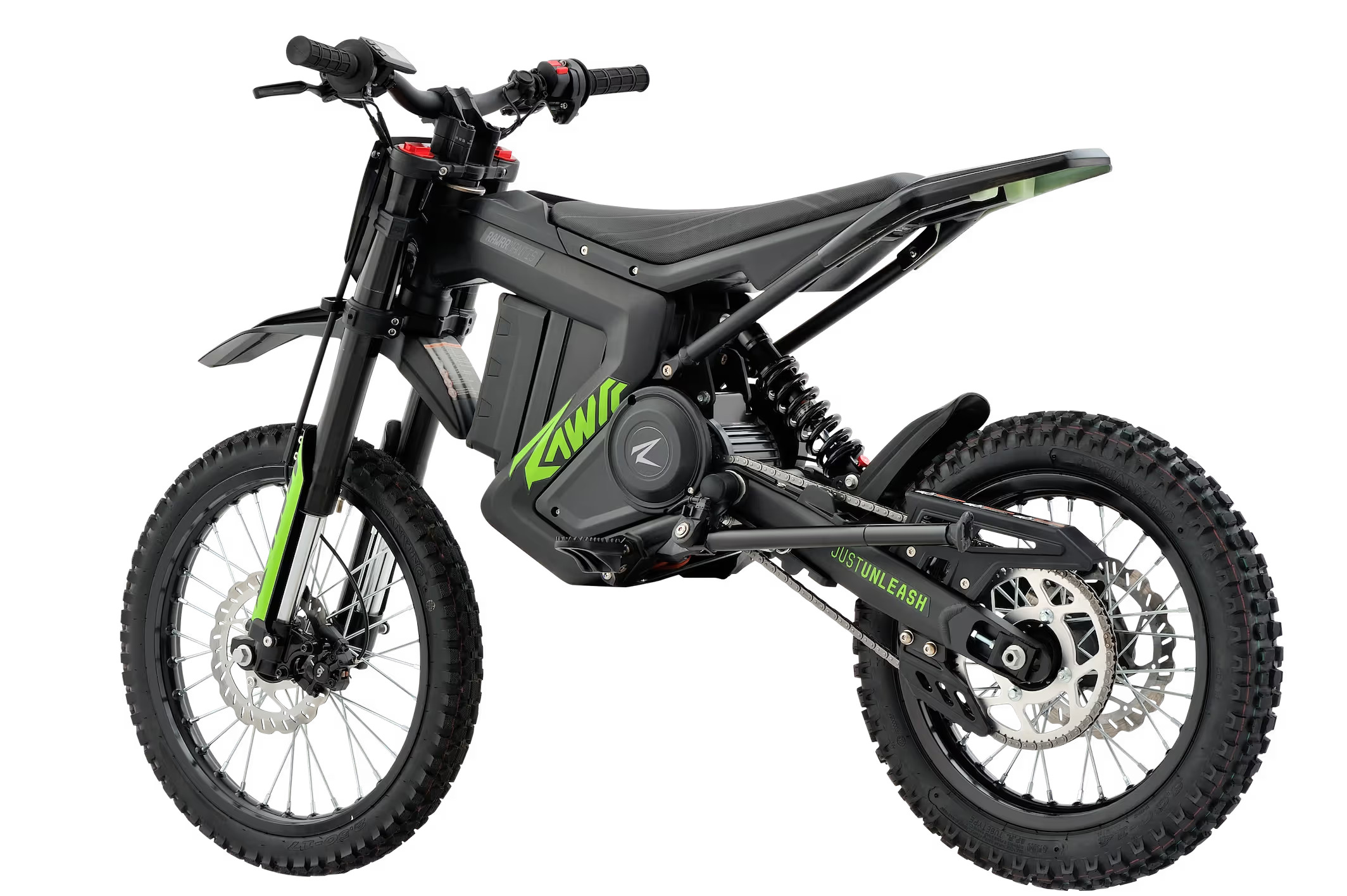

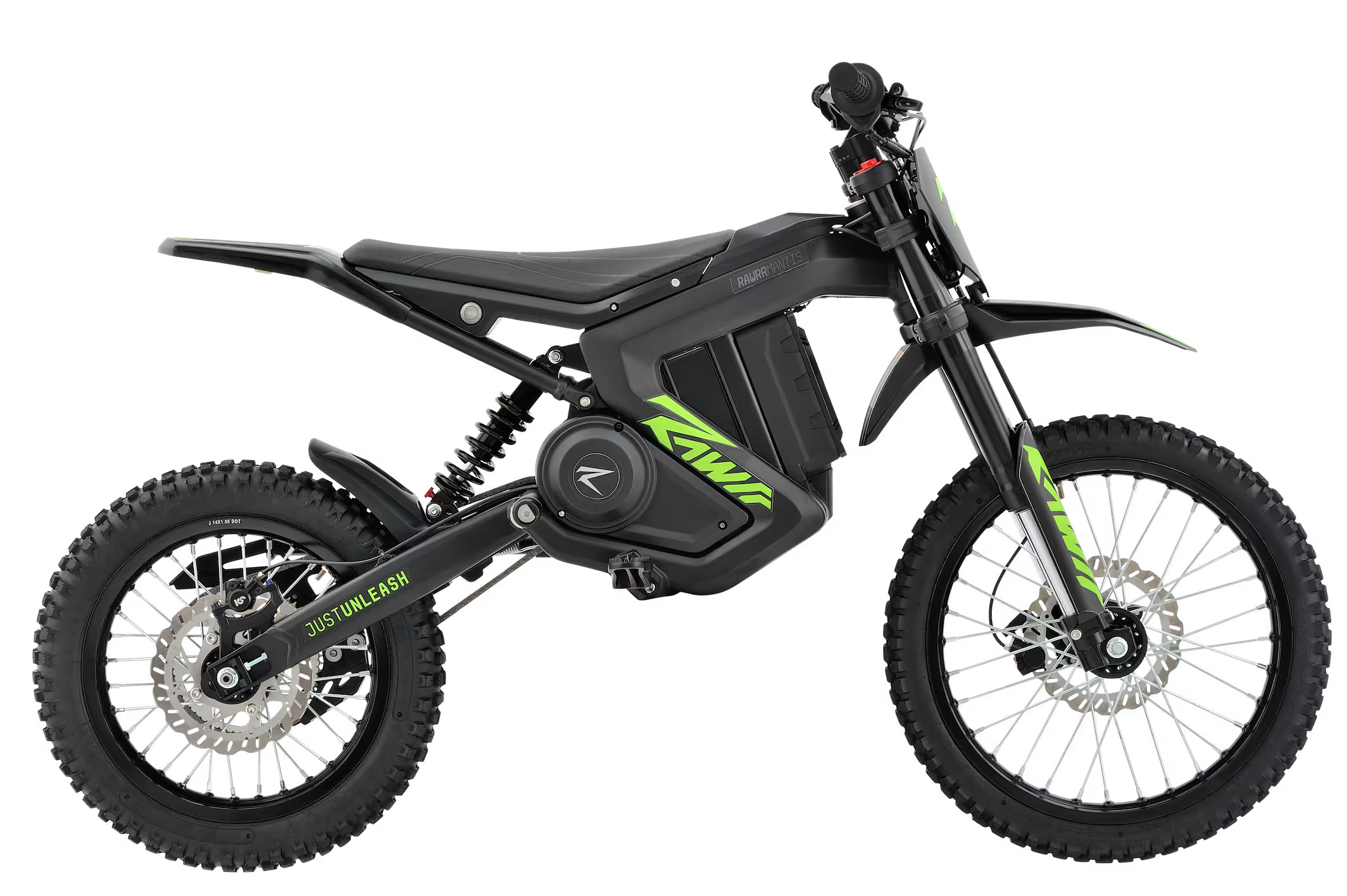

Rawrr Mantis Mini R17 72V All-Terrain E-Moto
$91/mo.1
Available In-Store: Get it today.
What if. Adjust the sliders and see.
Disclaimers
1Example payment and amount financed exclude processing fee, tax, license, registration, destination charge and dealer-installed options. Energy drink per day based on example payment divided by price of $4.69.
Values displayed are estimates for illustrative purposes only and do not constitute a request for specific credit terms or an offer of credit. Approved credit application required to determine actual credit terms.
PERFORMANCE
Max speed – 46 MPH
Acceleration – 0-18.6 MPH 1.8 s | 0-31 MPH 3.6s | 0-46 MPH 10s
Range – 31 Miles
Max Torque – 154.9 Ft Lbs
Max Motor Power – 4500W
Regular Motor Power – 2000W
Climbing Ability – 45 Degree
SAFETY
Motor & Controller-IP – IP66
Battery & connector IP – IP55
App-Controlled Tuning – Yes
Max Speed Limiter – Yes
Kill Switch – Yes
Chain Cover – Yes
Kickstand Sensor – Yes
Brake Sensors – Yes
ELECTRICAL
dash Type – LCD
Battery type – Lithium Ion
Battery Capacity – 72V 1440WH
Battery Life Cycle – 800 Cycles
Charger Input Voltage – AC110/220V
Charge Time – 3-6 Hours
Controller Type – FOC Sine Wave
Ride Modes – 1 / 2 / 3
MECHANICAL
Brake Type – 2-Piston Hydraulic Disc Brakes
Front Fork Travel Distance – 4.33 In
Motor type – Brushless
Motor Cooling Method – Air Cooling
Drive System – Direct Chain Drive
Motor max Operation Temperature – 85 Degree Celsius
Frame – 6061 Aluminum Alloy
MEASUREMENTS
Length – 64.57 IN
Height – 38.98 IN
Width – 26.42 IN
Max clearance – 10.63 IN
Wheelbase – 42.56 IN
Seat height – 30 IN
Front Tire Size – 70/100-17
Rear Tire Size – 3.00/14
Front brake Disc Size – 203 mm
Rear brake Disc Size – 203 mm
Bike weight with battery – 110 Lbs
Max Payload – 165 Lbs
